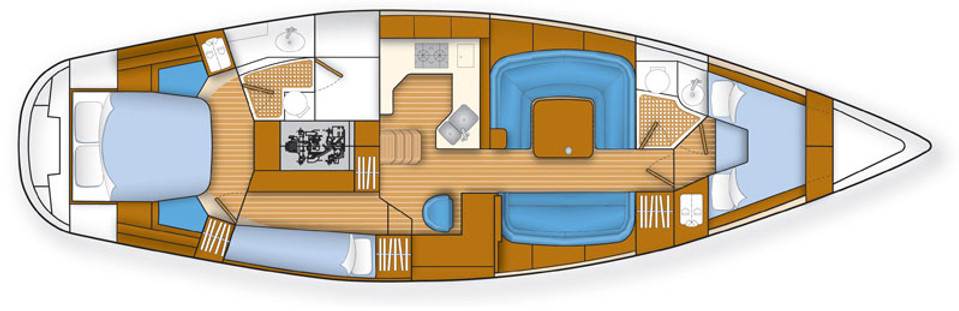

INTERIOR LAYOUT

MANUFACTURER PROVIDED DESCRIPTION

​

The interior of this impressive yacht has an atmosphere of light and spaciousness, whilst also capturing the feeling of snugness. The raised saloon is a welcomed feature within this 45ft yacht, with comfortable seating and excellent all-round vision. The navigation area, raised and to starboard, again shares the panoramic views. Ample headroom in all three cabins is a principle feature on the Southerly 135RS. The spacious aft cabin has plenty of storage, ensuite facilities, plus the additional storage/workshop/utility cabin. The forecabin has twin “V” berths converting to a double berth with shared en-suite facilities. The portside midships cabin has twin bunk berths. The linear galley has extensive work surfaces, making good practical use of every space available.

​

CONSTRUCTION

HULL

Heavy duty GRP moulding, hand laid up to Northshore’s Nordseal laminating system incorporating multi-axial and unidirectional reinforcements. Thickness increases progressively towards the keel area. The keel box is an integral part of the hull layup and sandwich construction stiffening runs the entire length of the hull topsides.

All main bulkheads are bonded into the hull at main lay-up stage. The engine bearers are also an integral part of the hull structure.

​

• Topsides gel coat: Stars and Stripes Blue LR14401(Painted Cobalt Blue 2022)

• Clear gel coat below the waterline

• Coppercoat antifouling system (New 2021)

• Boot top: Off white 3969

• Style lines: Off white

​

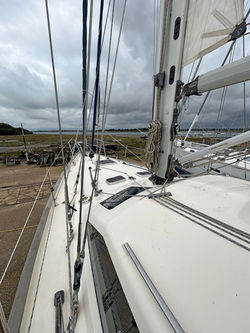

DECK

Hand laid up GRP. Sandwich type construction using balsa core stiffening, with plywood in high stress areas where fittings are positioned. Heavily stressed areas are additionally reinforced with unidirectional glass reinforcement. The deck is bonded to the hull through the entire length and to all main bulkheads resulting in a strong and integrated unit. Teak capping rail to hull to deck joint upstand. Access to chain locker from foredeck.

​

• Moulded non-slip finish to ring deck.

• Deck gel coat: Off white 3969

​

VARIABLE DRAFT KEEL

The fixed ballast is an iron casting which acts as a grounding plate and as transverse stiffening for the keel unit. It is fitted into a recess in the hull in the area of the keel box with stainless steel bolts. The aerofoil Swing Keel is cast iron and incorporates a stainless steel pivot at the leading edge. The Swing Keel is raised and lowered by a hydraulic ram powered by an electrically driven pump with a hand operated back-up. All hydraulics are easily accessible for maintenance. Keel control and gauge showing keelposition fitted at wheel pedestal Removable stainless steel pin, positioned to enable the keel to be locked in the ‘up’ position.

​

ENGINE

• Yanmar 4JH4-E 55 hp 4 cylinder, fresh water cooled, diesel engine with reduction/reverse gear 100 amp

• Balmar alternator and controller

• Bronze stern tube with water lubricated stern gland

• Stainless steel propeller shaft

• Brunton H5 Autoprop propeller (New 2019)

• Ambassador AM10 rope cutter fitted to propeller shaft

• Substantial skeg fitted on centreline to protect propeller and rudders when yacht is dried out

• Two stainless steel fuel tanks – capacity 360 litres/80 gallons, with sediment trap and line filter

• Bronze water inlet with removable filter gauze strainer

• 12 volt electric ventilator extractor fan

• Sound deadening to engine box

• Removable panels around engine box for access

• Automatic fire extinguisher in engine compartment (New 2023)

BOWTHRUSTER

• 75Kg Lewmar 185TT bow thruster with control at helm

ELECTRICS

• 12 volt system

• Two heavy duty batteries, charged from engine alternator for engine/generator

• Simarine battery management panel (New 2019)

• Two Victron 330Ah LiFePo Lithium batteries for domestic use (New 2023)

• Victron VE Bus Battery Management System 2

• Victron Smart 720 battery monitor (New 2021)

• Victron GX colour panel

• Isolating switches

• Cabin lighting throughout

• Reading lights over bunks

• Chart light over navigation table

• Full LED navigation light system incorporating bow lights, stern light, masthead tricolour light with all round white anchor light, deck flood light and steaming light

• Circuit breakers on main panel

• USB Sockets fitted at chart table, aft cabin and forward cabins

• 12V interior socket (Cigarette lighter type) fitted in Aft cabin portside

• 110V ring main, with five double US outlet sockets (Aft cabin to port, aft heads, workroom, galley and saloon)

• 230V 50Hz differential breakers RCCB (New 2020)

• Shore power connection 230V 50Hz 16A (New 2020)

• Fisher Panda 110V 8 Mini-DP generator 8kW

• 50Amp 240V 60Hz shore power connection cable

• Two Victron Energy inverter charger 3000VA (New 2021)

• Two Victron Lifepo4 30A smart charger 230V 50Hz (New 2020)

• Victron galvanic isolation 230V (New 2020)

• Lightning master fitted to masthead, connected through mast step to ground plate fitted to hull to provide lightning path in case of strike

• Rutland 1200 wind generator (New 2019)

• Victron Smart Solar charge controller MPPT 100/50 (New 2024)

• 450W solar panels (New 2024)​

​

ENGINEERING​

• Holding tank system fitted to forward heads, toilet pumps to sea or into tank

• Holding tank system fitted to aft heads, toilet pumps to sea or

• Panda HRO Seafari Escape 400 gallon/day water maker with automated self-flushing Planair forced air diesel heater (New 2020

​

ELECTRONICS & NAVIGATION

• Radar reflector fitted at mast

• Raymarine Axiom+ 12” display with touch screen at Nav table (New 2023)

• Raymarine Axiom 2 Pro display at helm (New 2023)

• Raymarine Quantum Raydome with scanstrut bracket fitted to mast (New 2023)

• Raymarine 125 GPS receiver

• Vesper 8000 AIS (New 2018)

• Raymarine EV-1 autopilot (new 2023)

• Raymarine RAY91 VHF Radio with wireless handset and active speaker (New 2023)

• Raymarine Seatalk high speed network switch and interface

• Icom M-802 SSB radio

• Icom handheld VHF radio

• Iridium Go satellite WiFi with external antenna

• Bluetooth enabled Fusion MS-AV600 marine DVD, CD and stereo at Nav station

• Raymarine 70i speed, wind and depth in cockpit (New 2021)

• Lewmar Olympic 135 compass at helm

• Liverpool and Glasgow brass clinometers

• Glomax TV antenna at masthead with splitter and two outlets

• Hydrovane autopilot system (New 2018)

• ACR EPIRB and 3 x MOB1 RescueMe (New 2018)

• Starlink satellite internet (New 2022)​​

​

WATER SYSTEMS & PUMPS

• Pressurised hot and cold water system

• Mixer tap to galley sink

• Mixer tap in heads compartments

• Two stainless steel fresh water tanks total capacity 545 litres/120 gallons

• Electric pressure pump

• Hot water provided by engine calorifier unit

• Two electric sump pumps to shower trays

• One manual bilge pump

• Two electric submersible bilge pump (New 2020)

• High water bilge alarm

• Shower with hot and cold water, fitted at transom

​​

STEERING GEAR

• Semi-balanced twin rudders

• Pedestal mounted 32’’ stainless steel cockpit wheel

• Whitlock Mamba torque tube and bevel box system

• Single lever engine control

• Emergency steering system

• Compass guard and 6 inch main steering compass

SPARS & RIGGING

• Selden masthead rig

• Deck stepped with compression post to the keel

• Double spreaders

• Selden anodised aluminium spars, finished in silver, with in mast furling

• Internal halyards

• 1x19 stainless steel wire standing rigging with swage toggle-fork rigging screws (New 2023)

• Double headsail system with twin forestays

• Running rigging replace 2019

• Furlex headsail reefing systems

• Single line reefing led aft to cockpit

• Internal clew outhaul

• Adjustable rigid, gas filled boom vang

• Kicker, main halyard, topping lift, outhaul and 2 reefs lead aft

• Genoa halyard at mast

• Burgee and signal halyards

• Two Lewmar size 30ST winch on mast

• Stainless steel bowsprit

• Mast mounted spinnaker pole (New 2019)

SAILS

• In-mast main sail, Rolly Tasker (New 2021)

• Spinnaker in sock, Rolly Tasker (New 2021)

• Furling Elvestrom Sobstad Staysail

• Furling Elvestrom Genoa

• Elvestrom furling light wind gennaker

​

COCKPIT

• Centre cockpit

• Self draining

• Laid teak to cockpit seats and cockpit coaming

• Teak grating to cockpit sole

• Stowage bins

• Acrylic main hatch with washboard

• Instrument panel above hatchway

• Two winch handle pockets

• Steering pedestal with wheel

• Whitlock cockpit table fitted to steering pedestal

• Two safety harness eyes

• Sprayhood in tan canvas with stainless steel frame

• Bimini in tan canvas with stainless steel frame and hide covered grab bar

• Wheel and pedestal all over cover in tan canvas

• Cockpit seats with drifast closed cell foam

​

​

​

​

​

​​DECK GEAR & LOOSE EQUIPMENT ​

• Cleats forward with through bulwark fairlead

• Spring and aft cleats with stainless steel chafe guards

• Fairleads

• Stainless steel stemhead fitting with twin bow roller

• Lewmar H2 electric anchor windlass, with gypsy and drum in anchor well with controls at the bow and helm

• Stainless steel pulpit incorporating navigation light bracket

• Stainless steel stanchions and guardwires with gates port and starboard

• Stainless steel pushpit incorporating stern gate, navigation light bracket and ensign socket

• Double seats with teak slats fitted to pushpit

• Fuel and water deck fillers

• Genoa tracks with plunger cars port and starboard

• Track and traveller for mainsheet with end turning blocks and cleats for traveller lines just aft of cockpit

• Mast step incorporating blocks for leading halyard and reefing lines back over coachroof

• Mainsheet track with control lines

• Four rope clutches on each side, for running rigging

• Lewmar 40EST electric and 30ST manual winches on coachroof for lines from mast

• Two Lewmar 50ST winches on cockpit coamings for genoa sheets

• Two mooring cleats on aft deck

• Two lazarette lockers with gas stowage vented overboard

• Scoop stern with bathing platform

• Stern boarding ladder

• Deck shower in transom

• Stainless steel grab handles on either side of coachroof

• Simpson LDD 75 quick release/removeable dinghy davits

• Dinghy with 2.5HP outboard motor & 6HP outboard motor

• Teak pad for outboard stowage mounted on pushpit

• 8 Person Viking Offshore liferaft in canister mounted in stainless steel cradle fitted to pushpit (New 2018)

• PVC coated wire jackstay harness lines fitted port and starboard

• 33Kg Rokna Vulkan anchor

• 100 metres of calibrated chain (New 2019)

• Danforth stern anchor with 5M chain and 50M rope

• Three fire extinguishers

• One fire blanket

• Two 10’’ lock in winch handles

• 4 Fenders

• 3 Warps

• Boat hook

• Ensign & Staff

​

WINDOWS, HATCHES AND VENTILATION

• Two opening deck hatches, size 60, over forecabin and aft cabin.

• Four opening hatches in coachroof, size 20 over saloon, galley and chart table.

• Glazed opening ports in aft cabin coamings port and starboard

• Four dorade and three fixed ventilators on deck serving forward heads, saloon and aft cabin

• Acrylic main companionway hatch

• Pilot house windows and hull ports are partially reflective toughened glass, bonded into recesses in GRP mouldings

​

INTERNAL JOINERY & UPHOLSTERY

Interior joinery is finished in solid timber and marine faced quality plywood. Linings are fabric covered plywood or GRP as appropriate. Cabin soles are teak and holly striped non-slip laminate.

• Interior joinery: Teak

• Saloon upholstery: Alcantara

• Cabin upholstery: Alcantara

• Navigation seat

• Curtains

• Concertina Blinds: Blackout type

​

ACCOMMODATION

The layout is in accordance with the general arrangement drawing. There are a total of seven berths with two in the forecabin, two in the aft cabin, three in the saloon (a double berth conversion and a single settee)

​

GALLEY​

• Twin stainless steel sinks

• Solid surface Hi-Macs worktops

• Pressurised hot and cold water

• Extendable shower head tap

• Aquafilta water fitted system

• Chrome freshwater hand pump

• Stainless steel grab rail to cooker

• Frigoboat stainless steel refrigerator with keel cooler unit fitted to hull

• Frigoboat stainless steel top-loading freezer with keel cooler unit fitted to hull

• Fully gimballed Neptune 2500 gas cooker with two burners, grill and oven (fail-safe devices on all burners) 110V Microwave

• Gas cut off tap

• Ample storage for crockery and cutlery

• Cupboards

• Opening hatch

​

SALOON

• Dinette seating arrangement to port

• Stainless steel mast support, table slides and can drop to convert areas to double berth

• Table will extend to starboard to maximise seating

• Full length single settee to starboard

• Stowage and bookshelves outboard

• Four hull ports

• Two opening hatches

• Curtains to hull ports

• Concertina blinds to pilot house windows

• Bluetooth enabled Fusion MS-AV600 marine DVD, CD and stereo

• Clarion Marine Audio APX280M 2 channel power amp with
  Bose speakers in the stateroom, saloon and forward cabin​

• Sony 32 smart TV

• Carbon Monoxide detector

NAVIGATION AREA

• Swivelling navigator's seat

• Excellent vision

• Instrument console forward of chart table

• Chart stowage

• Locker spaces

• Opening hatch over

• Chart light

• Main switch panel

​

PASSAGE WAY TO AFT CABIN

• Access to engine

• Three opening port lights

• One hull port

FORE CABIN​

• ‘V' berth, two long single berths with pocket sprung mattresses

• Infill to convert to a double

• Two large hanging lockers

• Stowage under berths

• Overhead lockers forward

• Opening hatch Screen/shade to hatch

• Two opening portlights Two hull ports

• Curtains

• Bose speakers with separate volume control
  6,000 BTU reverse cycle

• Cruisair air-conditioning unit (2012)

​

FORWARD HEADS​

• Electric Marine w.c.

• Washbasin with white Nordstone surround

• Hot and cold pressurised water

• Shower

• Grating to shower tray

• Electric shower pump

• Locker

• Mirror

• Glass holder

• Dorade ventilator with fan

• Opening port ligh

AFT CABIN

• Large central double berth, with pocket sprung mattress and Memory foam topper

• Seating either side

• Vanity unit

• Chest of drawers

• Hanging locker

• Opening hatch

• Four opening port lights

• Dorade ventilators

• Curtains

• Flat screen TV (New 2023) connected to Jansen stereo with Bose speakers 10,000 BTU reverse cycle

• Cruisair air conditioning unit (2012)

• Access to steering gear from under berth

• Carbon monoxide detector

​

AFT CABIN ENSUITE

• Electric flush marine w.c.

• Washbasin with white Nordstone surround

• Hot and cold pressurised water

• Shower

• Electric shower pump

• Grating to shower tray

• Lockers

• Mirror

• Glass holder

• Two opening portlights

• Ventilation through cockpit coamings with fan

WORKSHOP

• Access from aft cabin ensuite and through cockpit locker

• Spendide Comb-o-Matic 5200 washer/dryer

• Work bench

• Stowage below

• Scuba compressor

• Water maker

​

GENERAL

An extensive amount of service and upgrade work has been carried out by the current owner during his ownership a copy of which can be supplied on request.
