Dimensions

LOA: 12.86m (42'2")
LWL: 11.11m (37'6")
Beam: 4.03m (13'3")
Disp'ment: 11,800kg (26,000 lbs)
Ballast: 2,037kg (4,491 lbs)
Keel Type: Lifting Keel
Draft Min: 0.84m (2'9")
Draft Max: 2.72m (8'11")

Air draft: 18.73m (61'5'')

SOUTHERLY 420

Details

Model: Southerly 420
Model Year: 2013
Tax Status: Paid
Location:
Northshore, Chichester
Boat Ref: 2722669
Status:
Available

Tax: Paid


Price: £365,000 SOLD

Engine

Make: Yanmar
Model: 4JH5E
Fuel: diesel
Power: 39.7kW (53 hp)

Hours: 790
Propeller: 3 Blade, Bronze, feathering

Tankage

Fuel: 288 litres (63 gallons)
Water: 532 litres (117 gallons)

An opportunity to own one of the few Southerly 420 cruising yachts built by Northshore Yachts Ltd. This fine example has outstanding sailing performance with easy handling from the centre cockpit. The spacious interior is fitted out to a very high standard and comes with many extras fitted and is well equipped for blue water cruising.

MANUFACTURERS DESCRIPTION

The Southerly 420 centre cockpit, blue water cruising yacht, designed by Northshore and Rob Humphreys can be easily sailed by two people and boasts an impressive sail plan. The tall fractional rig with swept back double spreaders, combines a self tacking furling jib and large mainsail with single line reefing, and a 110% Genoa with tracks.

A modern well-balanced hull form with a long heeled waterline and broad transom provides the Southerly 420 with thoroughbred performance and sea-kindly motion. The steering is direct with minimum backlash with twin semi-balanced rudders to give instantly responsive steering and precise directional control. The propeller is protected by a substantial skeg that assists in stabilising the yacht when taking the ground. The bow thruster gives the 420 exceptional low speed manoeuvrability and control.

The centre cockpit offers comfortable seating around the single helm station with space for full instrumentation. The mainsheet track is integrated into the aft cockpit coaming with the traveller control lines led to coaming self-tailing winches which also control the main and jib sheets. Secondary winches either side of the companionway handle the reefing and kicker functions making the yacht easily managed from the cockpit while underway. Coaming mounted winches easily accessible from the helm are part of the optional genoa package which includes tracks on the side decks. A teak table that folds against the pedestal when not in use offers alfresco dining capabilities in the cockpit. The stylish transom features a teak-decked swim platform with integral telescopic bathing ladder for water access, a fresh water shower and moulded teak surfaced steps to the aft deck.

The spacious light and airy aft cabin boasts a large centreline double berth with seating both sides, plentiful stowage, superior ventilation and ensuite facilities. A separate shower to ensuite facilities provides for added comfort. The large saloon seating area provides comfortable dining for six. Large coach roof windows provide panoramic visibility taking full advantage of all-round views. Two good size opening forward coachroof windows provide exceptional natural ventilation. The linear galley has large working surfaces with abundant storage, a stainless steel fridge, freezer, double sink and a fully gimballed cooker as standard. The large forward cabin is fitted with v berths, which convert to a double, with good storage, natural light and ensuite facilities.

The highly developed variable draft keel gives the freedom and versatility to sail in almost any waters. With the keel lowered, the deep draft of 8’9’’ (2.67m) makes for fast, serious passage making, with powerful windward performance. At the touch of a button, the keel can be raised, to give a shallow draft of just 2’7’’ (0.77m), perfect for exploring coastlines, shallow bays and inland waterways.

The Southerly 420 conforms to EC category A.

CONSTRUCTION
Heavy duty GRP moulding, hand laid up to Southerly’s Nordseal laminating system incorporating multi-axial and unidirectional reinforcements. The keel box is an integral part of the hull lay-up and sandwich construction stiffening runs the entire length of the hull topsides. All main bulkheads are bonded into the hull at main lay-up stage along with a stiffening grillage of transverse frames and longitudinal stringers. The engine bearers are also an integral part of the hull structure. Solid GRP hull below the waterline.

HULL

  • Southerly Blue gel coat

  • Ivory White boot top

  • Ivory White style lines

  • Tri-view vertical port lights to both sides of saloon

  • Clear gel coat below the waterline

  • Coppercoat antifouling system applied to underwater area when built (2013)



DECK

Hand laid up GRP sandwich construction. Heavily stressed areas are additionally reinforced with uni-directional glass reinforcement. The deck is bonded to the hull through the entire length and to all main bulkheads resulting in a strong and integrated unit.

  • Ivory white gelcoat
  • Teak laid ring deck

  • Teak capping rail to hull and deck joint upstand

  • Access to sail locker from foredeck

VARIABLE DRAFT KEEL

The fixed ballast is an iron casting which acts as a grounding plate and as transverse stiffening for the keel unit. It is fitted into a moulded recess in thehull in the area of the keel box with stainless steel fastenings. The aerofoil keel blade is cast iron and incorporates a stainless steel pivot at the leading edge.

Variable draft is achieved by raising and lowering the blade with an electrically driven pump, fitted with a manual back-up. All hydraulics are easily accessible for maintenance. The keel control is fitted at the helm pedestal with a gauge showing the keel position. A removable stainless steel pin enables the keel to be locked in the “up” position.



ENGINE

  • Yanmar 4JH5E 53 hp 39.6kW 4 cylinder, fresh water cooled, diesel engine. Serviced March 2019. Reduction/reverse gear

  • 80 amp alternator

  • GRP stern tube with water lubricated stern gland

  • Stainless steel propeller shaft

  • Aquadrive CBV10 for reduced engine noise and vibration

  • Bronze three bladed MaxProp feathering propeller

  • Ambassador AM10 rope cutter

  • Substantial skeg fitted on centreline to protect propeller and rudders when yacht is dried out.

  • Non metallic fuel tanks - capacity 288 litres/63 gallons, with sediment trap, selector manifold and line filter

  • New fuel filter with glass base fitted to see clarity of fuel

  • Non metallic cooling water strainer with removable filter

  • 12 volt electric ventilator

  • Dedicated sound deadened engine compartment with door from aft heads compartment for maintenance



BOW THRUSTER

  • Lewmar 82Kg bow thruster with control at helm position.



ELECTRICS

  • 12 volt system

  • 240v ring main: includes 3 double outlet sockets, (saloon, galley, aft cabin) earth leak circuit breaker and connection cable ( with plug for shore connection 16A) and 1Kw immersion heater fitted in calorifier

  • Isolating switches

  • LED cabin lighting throughout

  • Reading lights over bunks

  • Chart light over navigation table

  • Full navigation light system incorporating bow lights, stern light, masthead tricolour light with Lopo LED white anchor light, deck flood light and steaming light

  • Circuit breakers on main panel

  • 12 volt 10amp interior socket for low load applications

  • 2 x 12 volt 25 amp interior sockets for high load applications, fitted in cockpit

ENGINEERING

  • 4 x Mastervolt AGM batteries, 3 x 345ah for service, 1 x 115ah for engine start (new in 2018)

  • 230v 3.5Kw generator with ship/shore changeover switch

  • Mastervolt battery charger 12/50 amp smart 3 step

  • Mastervolt Masterview Easy Battery Monitor

  • Generator, under navigation station seat, (Approx 100 hours run)

  • Holding tank plumbed to forward and aft heads

  • Webasto Hot air heating system with outlets to saloon, each cabin and aft shower

  • Schenker Watermaker 34ltr ph

  • Foot pump at tap in galley for sea water

  • 4 x 45amp Solar panels

  • Wind generator

  • Foldaway 12v electric fans to saloon and each cabin

WATER SYSTEMS & PUMPS

  • Pressurised hot and cold water system

  • Mixer tap to galley sink

  • Mixer taps in heads compartments

  • Two non-metallic fresh water tanks - Total capacity 532 litres/117 gallons

  • Electric fresh water pressure pump

  • Hot water provided by engine calorifier unit

  • Electric sump pumps to shower trays

  • One manual bilge pump

  • Three electric submersible bilge pumps



ELECTRONICS & NAVIGATION

  • Raymarine ST60 wind /speed/depth instruments fitted above companionway

  • Raymarine autopilot with mamba drive, display at helm and chart table, SPX10 Smart Pilot with Rate Gyro, includes rudder reference unit

  • Icom 423 VHF/DSC marine transceiver radio including aerial

  • Icom Command Mic external handset

  • External VHF speaker (2018)

  • Raymarine c95 Hybrid touch multi function display fitted at chart table

  • Raymarine e95 Hybrid touch multi function display fitted in navpod in cockpit on pedastal Raymarine 18'' scanner with scanstrut mast bracket

  • Raystar 130 Satellite GPS antenna, mounted to coachroof

  • Iridium Satellite telephone

  • Binnacle helm compass

ENTERTAINMENT

  • Radio/CD/MP3 stereo system with remote control mounted in cockpit

  • MP3 universal holder with connection cable

  • Waterproof cockpit speakers, replaced 2018

  • 22'' TV 12v fitted in master aft cabin, mounted on bulkhead

STEERING

  • Semi-balanced twin rudders

  • Single 36’’ stainless steel cockpit wheel

  • Cobra system

  • Single lever engine control

  • Emergency steering system

  • Compass guard and 6 inch main steering compass

STEERING PEDESTAL

  • Lewmar Mamba steering system pedestal with nav pod

  • Wheel rim covered in hide

  • Compass

  • Keel control and LED position indicator

  • ST6002+ autopilot display

  • External Icom Command Mic handset for VHF

  • New VHF cockpit speaker



SPARS & RIGGING

  • Selden fractional rig

  • Double swept back spreaders

  • Self tacking foresail

  • Furlex headsail reefing system

  • Backstay with manual tensioner

  • Aluminium spinnaker pole, vertical mast stowage with topping lift and down haul

  • 3 climbing steps on mast

  • New dyneema halyards and tipping lift in 2019



SAILS

  • Fully battened Norlam XP main sail with Selden MDS cars

  • Three reefs to main sail

  • Norlam XP self tacking jib

  • Norlam XP furling genoa

  • UV protection strip to foresail

  • Lazy jacks

  • Stac pac system

  • Asymmetric spinnaker

  • Storm jib

COCKPIT

  • Centre cockpit

  • Laid teak to cockpit seats

  • Laid teak to cockpit sole

  • Cockpit table on forward side of pedestal

  • Windscreen

  • Sprayhood (Tan) with hide covered grab bar

  • Bimini / Cockpit tent with panels that unzip and roll away

  • Cockpit awning, fixes from mast to backstays

  • Cockpit cushions using drainable foam

  • Lazarette locker to port and starboard

  • Gas bottle storage in cockpit locker to starboard

  • Perspex sliding hatch,vertically sliding wash boards with self draining housing Instrument panel above hatchway

  • Two winch handle pockets

  • Three safety harness eyes

  • Wheel rim covered with hide

  • Wheel and pedestal cover

  • Full winter cover

DECK GEAR & LOOSE EQUIPMENT

  • Mooring cleats forward and aft mounted on bulwark

  • Spring cleats amidships mounted on bulwark

  • Stainless steel stemhead fitting with twin bow rollers

  • Teak ring decks

  • Genoa deck pack includes tracks, cars, end stops, turning block and Lewmar 50ST winches Halyard & masthead block, stainless steel deck attachments for gennaker

  • 2nd jib halyard sheave, rope clutch jammer on mast

  • Foredeck locker

  • Re-inforced area to take anchor windlass

  • Quick Prince DP3 1500w windlass including hand held control head

  • Windlass control on steering pedestal

  • Stainless steel pulpit incorporating navigation light bracket

  • Stainless steel stanchions and guardwires with gates port and starboard

  • Stainless steel pushpit incorporating stern gate, navigation light bracket and ensign socket Single teak seats to port and starboard pushpit

  • Good access aft for boarding via transom

  • Telescopic stern boarding ladder

  • Simpson LSD75 davits to aft deck area

  • Fuel and water deck fillers

  • Self tacking foresail track with sheet to cockpit

  • Turning blocks to take reefing lines

  • Mainsheet track with control lines

  • Three rope clutches to port and four to starboard, for running rigging

  • One Lewmar 45AEST powered halyard winch

  • Two Lewmar 46ST winches for mainsheet

  • Stainless steel grab handles on either side of coachroof with integral mainsheet lead Harness lifeline jackstays port and starboard

  • Two folding deck eyes

  • 3 step ladder for deck

  • Deck shower with hot and cold water, fitted on transom

  • 20kg Delta anchor

  • 50 metres of chain

  • 30 metres of warp

  • Three fire extinguishers

  • Automatic fire extinguisher in engine space

  • One fire blanket

  • Power hose for deck cleaning

STEERING PEDESTAL

  • Lewmar Mamba steering system pedestal with nav pod

  • Wheel rim covered in hide

  • Compass

  • Keel control and position indicator LED panel

  • Raymarine Evolution 400 autopilot with rate gyro, P70 control panel

  • Two joysticks to control bow and stern thrusters

  • Large engine control panel, with Rev counter, temperature & oil pressure gauges Raymarine Hybrid Touch type e95 navigation display

  • Engine sea water alarm

  • Racor fuel filter water alarm

  • Second handset for ICOM VHF

  • VHF loud speaker

  • Wheel and pedestal cover

WINDOWS, HATCHES AND VENTILATION

  • Six opening deck hatches: size 60 and size 10 over forecabin, size 20 over saloon, size 20 over chart table, size 00 over forward heads.

  • Two glazed opening ports in aft cabin coamings

  • Two glazed opening ports in aft heads coamings

  • Glazed opening port in galley

  • Two dorade and one fixed ventilator on deck serving heads and saloon

  • Perspex main companionway hatch

  • Pilot house windows and hull ports are tinted toughened glass bonded into recesses in the GRP moundings

  • Pilot house opening forward windows port and starboard are toughened tinted glass.

INTERNAL JOINERY & UPHOLSTERY

  • Interior joinery is finished in solid American Cherry and marine faced quality plywood as standard. Galley worktop in corian type material, Pebble Blue

  • Heads worktops in corian type material, Aspen Glacier

  • Linings are fabric covered plywood or GRP as appropriate

  • Cabin soles are teak striped non-slip laminate

  • Saloon seating in Jab Fjord 1-2881-173 Bergen (Beige with thin white stripe)

  • Forward cabin in Christina Marrone Viva 701 China

  • White concertina blinds fitted to saloon windows

  • Curtains to all portlights in Camino 2

  • Roller shade/flyscreen to forecabin hatch

  • Roller shade/flyscreen to saloon and chart table hatches

  • 7" sprung mattress to master cabin berth

  • Anticondensation mesh under master berth mattress

ACCOMMODATION

The layout is in accordance with the general arrangement drawing. There are a total of seven berths with two in the forecabin, two in the aft cabin and three in the saloon (including double berth conversion to port).

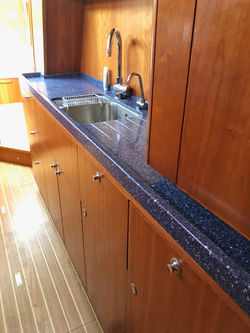

GALLEY
  • Twin stainless steel sinks

  • Corian type worktop, Pebble Blue

  • Pressurised hot and cold water

  • Stainless steel grab rail

  • Front loading stainless steel refrigerator, keel cooled

  • Top loading freezer, keel cooled

  • Fully gimballed gas cooker with three burners, grill and oven (fail-safe devices on all burners) Gas cut off tap

  • Ample storage for crockery and cutlery

  • Cupboards

  • Opening ports

  • Fixed hull port

  • Overhead light



SALOON

  • Seating for eight people

  • Excellent vision

  • Folding leaf table

  • Stowage

  • Bookshelf

  • Two opening hatches

  • Two front opening windows

  • Two fixed portlights

  • Overhead lights

  • Concertina blinds to pilot house windows

  • Overhead lights

  • 2 reading lights at forward ends of saloon seating

  • Pull out double berth conversion to port seating



NAVIGATION AREA

  • Chart table to starboard, excellent visibility Navigator's seat

  • Instrument console forward of chart table Illuminated cupboard to navigation integrated controls Chart stowage

  • Locker spaces

  • Opening hatch over

  • Chart light

  • Main switch panel

  • Oilskin locker under companionway steps



FORE CABIN​

  • V berth, two single berths, infill to convert to a double Hanging locker

  • Shelved locker

  • Shelves

  • Two fixed portlights

  • Two opening hatches

  • Two reading lights

  • Curtains



FORWARD HEADS

  • Marine toilet with automatic toilet steriliser, plumbed to holding tank

  • Washbasin with Corian type surround

  • Hot and cold pressurised water

  • Shower

  • Electric shower pump

  • Shower grating

  • Opening hatch

  • Lockers

  • Mirror

  • Glass holder



AFT CABIN

  • Large centreline double berth

  • Illuminated hanging lockers each side of bed

  • Two corner lockers

  • Additional locker storage in lieu of standard seating Shelves

  • Two opening port lights

  • Opening hatch

  • One fixed port light

  • Two reading lights

  • Concertina blinds

  • Door to ensuite facilities and engine room



AFT CABIN EN-SUITE

  • Marine toilet with automatic toilet steriliser Washbasin with Corian type surround

  • Hot and cold pressurised water

  • Separate shower with hinged door

  • Grating to shower tray

  • Electric shower pump

  • Opening portlights

  • Lockers

  • Mirror

  • Glass holder

SAFETY EQUIPMENT

  • Liferaft in cradle

  • 3 Lifebuoys

  • Flares

  • EPIRB location device (2018)

  • Satellite phone (Iridium)

  • Lightening conductor fitted to masthead

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

bottom of page
