SOUTHERLY 38 SOLD  -  Built 2011, £265,000 Lying Gosport

SOUTHERLY 38

Details

Model: Southerly 38
Model Year: 2011
Tax Status: Paid
Location: Gosport

​


Boat Ref:Arabella
Status: SOLD


Price: £265,000

Engine

Make: Yanmar
Model: 3JH5-E
Fuel: diesel
Power: 40 hp
Propeller: 3 Blade, bronze, ropecutter

Engine Hours: 1294

Tankage

Fuel: 230 litres (51 gallons)

Water: 270 litres (59 gallons)

Dimensions

LOA: 12.0m (39'4")
LWL: 11.0m (36'0")
Beam: 4.0m (13'0")
Disp'ment: 9,921kg (21,872 lbs)
Ballast: 2,100kg (4,629 lbs)
Keel Type: Lifting Keel
Draft Min: 0.8m (2'8")
Draft Max: 2.6m (8'6")

Air draft: 18.86 m (61'10'')

SHALLOW DRAFT FREEDOM, DEEP DRAFT PERFORMANCE
​

​

A prime example of the Southerly 38, built here at the Northshore Shipyard in 2011. This yacht has been well cared for and maintained and her condition is a credit to the owners.

​

The interior space below decks is impressive when comparing to other yachts of a similar size and needs to be seen to be believed. The large aft cabin with ensuite is very much a home from home. The aft cockpit is well laid out, giving safe seating when sailing and is perfect for after sailing social and dining activities.

​

The Southerly 38 has the world renowned Swing Keel system which can be raised and lowered at the touch of a button. You will be able to explore rivers and anchorages where a standard fixed fin keel yacht dare not go, as with the keel raised the Southerly 38 needs less than 3 feet of water to float. She will also dry out upright on the cast iron ground plate, ideal for family picnics on the beach!

​

The owners have recently carried out extensive upgrades to the electronics, rigging and engineering equipment. But due to other commitments have not been able to make full use of the yacht, and enjoy sailing her, since the works were carried out.

We would highly recommend an viewing of this wonderful yacht.

​

Designed by Stephen Jones & Northshore Yachts

​

​

INTERIOR LAYOUT

​

38 CABIN LAYOUT.jpg

INTERIOR ACCOMMODATION

SPECIFICATION

SPECIFICATION

HULL CONSTRUCTION

Heavy duty GRP moulding, hand laid incorporating multi-axial and unidirectional reinforcements. The keel box is and integral part of the hull layup and sandwich construction stiffening runs the entire length of the hull topsides. All main bulkheads are bonded into the hull at the layup stage along with stiffening grillage of transverse frames and longitudinal stringers. The engine bearers are also an integral part of the hull structure.

  • Hull Gelcoat Colour: Southerly Blue

  • Boot Top: Off White

  • Twin Style Lines: Off White

  • Coppercoat antifouling system applied to underwater areas from new



DECK CONSTRUCTION

Hand laid up GRP. Sandwich construction. Heavily stressed areas are additionally reinforced with unidirectional glass reinforcement. The deck is bonded to the full through the entire length and to all main bulkheads resulting in a strong and integrated unit.

  • Deck Gelcoat colour: Off White

  • Teak capping rail to hull & deck joint

  • Teak laid ring deck

​

VARIABLE DRAFT KEEL

The fixed ballast is an iron casting which acts as a grounding plate and as transverse stiffening for the keel unit. It is fitted into a recess in the hull in the area of the keel box with stainless steel bolts. The aerofoil shaped keel is cast iron and incorporates a stainless steel pivot at the leading edge. The keel is raised and lowered by a hydraulic ram powered by an electrically driven pump with a hand operated back-up. All hydraulics are easily accessible for maintenance. Keel control and gauge showing keel position fitted at wheel pedestal.

Removable stainless steel pin, positioned to enable the keel to be locked in the ‘up' position.

​

ENGINE

  • Yanmar 3JH5-E 39hp 3 cylinder, fresh water cooled, 39hp diesel engine

  • Reduction/reverse gear

  • 80 amp alternator

  • Bronze stern tube with water lubricated stern gland. Cutless bearing replaced spring 2021, Sterngland packing replaced spring 2023

  • Stainless steel propeller shaft

  • Bronze three bladed feathering Max-Prop propeller

  • Ambassador AM10 rope cutter

  • Substantial skeg fitted on centreline to protect propeller and rudders when yacht is dried out

  • Non metallic fuel tank - capacity 230 litres/51 gallons, with sediment trap and line filter. Water separator upgraded to glass bowl type summer 2022. Inspection hatch added to fuel tank and tank cleaned summer 2023

  • Non metallic water strainer with removable filter
    12 volt electric ventilator
    Sound deadening to engine box
    Hinge up panels at either end of engine box for access Engine box can be completely removed for maintenance

​

THRUSTERS

  • 82Kg Bow thruster fitted

  • 82Kg Stern thruster fitted to skeg

  • Controls fitted at helm steering position, replaced spring 2021

​

ELECTRICS & ENGINEERING

  • 12 volt system

  • Four heavy duty AGM batteries, charged from engine alternator, replaced summer 2021; one for engine, two for domestic use. Batteries replaced summer 2020

  • Isolating switches

  • Cabin lighting throughout

  • Reading lights over bunks

  • Chart light over navigation table

  • Full navigation light system incorporating LED Port & Starboard lights, LED bow light, LED stern light, LED masthead tricolour light with all round white anchor light, deck flood light and steaming light

  • Wardrobe lighting rails in aft and fwd cabin hanging lockers

  • Circuit breakers on main panel

  • 240v Ring main, including 3 double outlet sockets: galley, saloon and aft cabin.

  • 12V 10amp interior socket fitted at chart table

  • Mastervolt Mass Combi unit12/1200W -100A inverter/charger

  • 75 litre top loading refrigerated ice box in galley with keel cooler to compressor

  • Alpine radio/CD player

  • Hot air heating system with 4 outlets

  • Holding tank system, connected to aft toilet only

  • Rutland 1200 windcharger and solar panels added spring 2023

​

WATER SYSTEMS & PUMPS

  • Pressurised hot and cold water system

  • Mixer tap to galley sink

  • Mixer tap in heads compartments

  • Chrome fresh water hand pump fitted at galley sink Aquafilta water filter

  • Non-metallic fresh water tank – total capacity 225 litres/49 gallons

  • Electric pressure pump

  • Hot water provided by engine calorifier unit with 1kW immersion heater

  • Electric sump pumps to shower trays

  • One manual bilge pump

  • One electric submersible bilge pump



NAVIGATION & ELECTRONICS

  • Raymarine ST60+ speed depth and wind indicators above companionway, with graphic display at chart table (all upgraded spring 2021)

  • Raymarine Evolution smart autopilot with internal rate Gyro with Mamba drive, with displays in cockpit and at chart table (Upgraded spring 2021)

  • Raymarine RAY218E VHF radio with DSC function

  • External speaker for VHF

  • RayMic 2nd station hand mic for VHF radio in cockpit

  • Raymarine AIS500 receiver and transponder for collision avoidance information

  • Raymarine Quantum Q24C radar dome fitted on mast (new spring 2021)

  • Raymarine Axiom Pro 9" multi function display mounted on swivelling pod at rear of cockpit table (new 2021)

  • Raymarine Axiom+ 12" multi function display fitted at chart table (new 2021)

  • Raystar 125 Satellite GPS antenna mounted to coachroof

  • Radio/CD/MP3 stereo system with two speakers

  • Waterproof cockpit speakers for stereo system

  • 18” LCD flat screen TV with built in freeview and DVD player, fitted to Stbd saloon bulkhead

  • Glomex TV antenna fitted to mast head

  • Radar reflector fitted at mast

  • 4G mobile router and mast antenna (new spring 2021)

  • Navlink 2 NMEA to WiFi (New spring 2021)

​

STEERING

  • Semi-balanced twin rudders

  • Twin 30’’ hide covered stainless steel cockpit wheels

  • Canvas wheel covers in Dune

  • Whitlock Cobra system

  • Single lever engine control

  • Emergency steering system

  • Compass guards and 6 inch main steering compasses

​​

SPARS & RIGGING

  • Selden fractional rig

  • Double swept back spreaders

  • Selden anodised aluminium spars, finished in silver

  • Internal halyards

  • 1x19 stainless steel wire standing rigging with swage toggle-fork chrome bronze rigging screws

  • Backstay with manual tensioner

  • Self tacking foresail

  • Furlex headsail reefing system

  • Furlex genoa reefing system

  • Single line reefing led aft to cockpit for mainsail

  • Kicker, gas lift added summer 2022

  • Main halyard, upgraded to Dyneema summer 2021

  • Spinnaker/Gennaker halyard

  • Topping lift

  • Kicker, jib sheet, main halyard, topping lift, outhaul and 3 reefs lead aft

  • Jib halyard at mast

  • Genoa sheets & Halyards

  • Burgee and signal halyards

  • Lewmar size 30 winch on mast

  • Removeable stainless steel bowsprit fitted to stemhead

  • All shrouds and stays replaced spring 2021

  • Reefing lines and genoa sheets replaced spring 2023

  • Preventer lines and blocks added spring 2023

​

SAILS

  • Dacron Sails

  • Fully battened mainsail system with roller bearing cars UV protection strip to foresail

  • Stac pac system for mainsail with Lazy Jacks

  • Roller furling genoa for light winds

  • Asymmetric spinnaker

​

​

​

COCKPIT

  • Aft cockpit

  • Self draining

  • Laid teak to cockpit seats

  • Cockpit cushions with drainable foam

  • Laid teak to cockpit sole

  • Cockpit table with folding leaves, stowage and handrail

  • Good access aft for boarding through transom

  • Cockpit locker to port and starboard

  • Gas bottle storage in cockpit locker to starboard Liferaft / fender stowage in cockpit locker to port

  • Perspex main hatch with washboard

  • Instrument panel above hatchway

  • Two winch handle pockets

  • Two safety harness eyes

​

TRANSOM

  • Fold down transom door/bathing platform with gas hinges

  • Deck shower with hot and cold water

​

DECK GEAR & LOOSE EQUIPMENT

  • Cleats forward and aft raised

  • Spring cleats amidships with stainless steel chafe guard

  • Stainless steel stemhead fitting with twin bow roller (replaced 2013 to accommodate new double headed rig set up)

  • GRP foredeck anchor locker with reinforced shelf to take anchor windlass

  • Quick Hector 1500w windlass with hand held remote control switch and addition switch at steering position

  • Sprayhood in Dune with hide covered grab bar

  • Bow protector and fender skirt in Dune

  • Wheel covers

  • Cockpit table covers

  • Stainless steel pulpit incorporating navigation light bracket (replaced 2013 to accommodate new double headed rig set up)

  • Stainless steel stanchions and guardwires with gates port and starboard

  • Stainless steel pushpit incorporating stern gate, navigation light bracket and ensign socket Fuel and water deck fillers

  • Self tacking foresail track with sheet to cockpit

  • Genoa tracks with cars fitted port and starboard

  • Turning blocks to take reefing lines

  • Mainsheet track with control lines

  • Six rope clutches to port and six to starboard, for running rigging

  • Two Lewmar 46ST winches, port manual, starboard electric

  • Two Lewmar 48ST Genoa winches to cockpit coaming

  • Stainless steel grab handles on either side of coachroof

  • 16kg Delta anchor

  • 50 metres of chain

  • 30 metres of warp

  • Horseshoe lifebuoy with bracket and light

  • 6 man Ocean Liferaft in cannister mounted on pulpit stowage bracket

  • Two fire extinguishers

  • One fire blanket

​

​WINDOWS, HATCHES & VENTILATION

  • Six opening deck hatches, size 22, over forecabin, size 41 over fwd cabin and fwd heads, saloon, one size 44 and

  • 2, size TBC over saloon, 2 size 00 over galley and aft heads

  • Glazed opening ports in aft cabin coamings port and starboard

  • Glazed opening ports in aft cabin to cockpit

  • Two dorade and one fixed ventilator on deck serving heads and saloon

  • Perspex main companionway hatch

  • Pilot house windows and hull ports are partially reflective toughened glass, bonded into recesses in GRP mouldings

​

​INTERNAL JOINERY & UPHOLSTERY

  • Interior joinery is finished in solid Mahogany and marine faced quality plywood. Linings are fabric covered plywood or GRP as appropriate. Cabin soles are teak striped non-slip laminate.

  • Galley worktop in Pebble Kernel 843

  • Heads counter tops in Tempest Shimmer 148

  • Saloon and cabin upholstery in Alcantara 8801 Pompeian Red

  • Navigator’s seat in San Remo Spice 5302

  • Aft Cabin headboard in San Remo Spice 5302

  • NaturalMat Airflow Mattresses on aft and fwd cabin berths

  • Curtains in Camino 2

  • Concertina blinds fitted to raised coachroof area in white

  • Roller shade/screens fitted to saloon hatches

  • Rolle shade/screen fitted to forward cabin hatch

  • Cockpit cushions in Sunbrella Yacht Stripe Dune, with drainable foam

​

ACCOMMODATION

The layout is in accordance with the general arrangement drawing. There are a total of six berths with two in the forecabin, two in the aft cabin and two in the saloon

​

GALLEY​

  • Twin stainless steel sinks

  • Corian type worktop, Gemini

  • Folding galley worktop extension flap with fiddles

  • Pressurised hot and cold water

  • Stainless steel grab rail

  • Top loading refrigerated ice box (75 litres)

  • 240V 800W microwave oven

  • Fully gimballed gas cooker with two burners, grill and oven (fail-safe devices on all burners)

  • Gas cut off tap

  • Ample storage for crockery and cutlery

  • Cupboards

  • Two opening hatches

  • Overhead light



SALOON

  • Full length ‘L shaped’ single settee to port and full length single settee to starboard

  • Folding leaf table

  • Double berth conversion to port saloon seating area

  • Four lockers forward

  • Shelves outboard

  • Stowage under seating

  • Two opening hatches

  • Overhead lights

  • Concertina blinds to pilot house windows

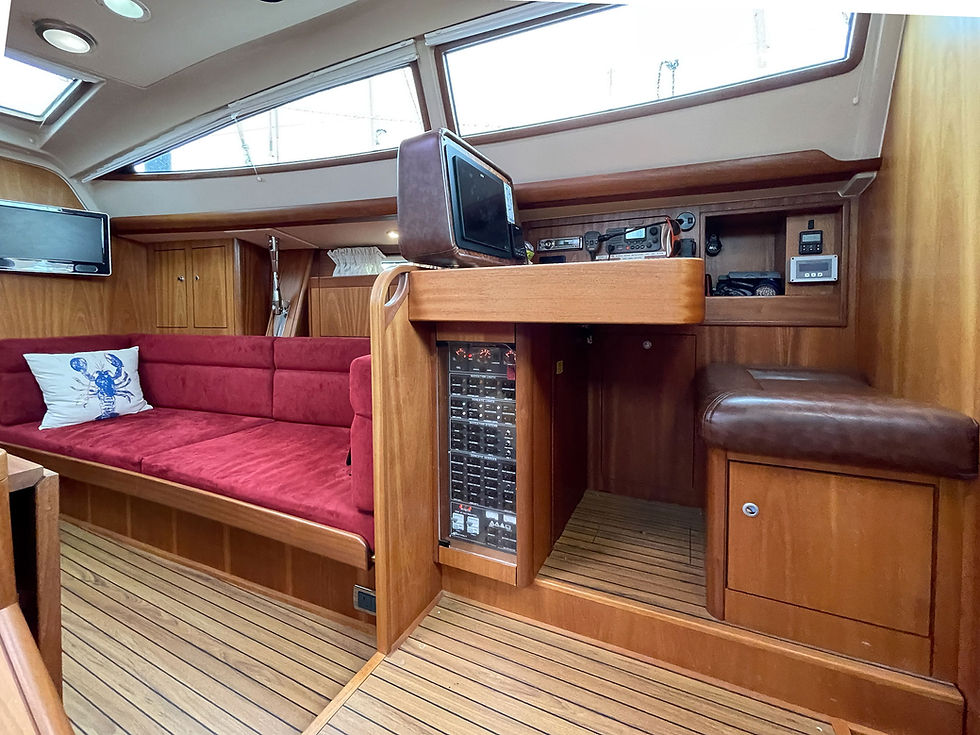

NAVIGATION AREA

  • Chart table to starboard with excellent visibility

  • Seat

  • Instrument console forward of chart table

  • Chart stowage under hinged lid

  • Locker spaces

  • Opening hatch

  • Overhead light

  • Chart light

  • Main switch panel

​

FORE CABIN​

  • ‘V' berth, two long single berths Infill to convert to a double

  • Large hanging locker

  • Two full length shelves

  • Two fixed portlights

  • Opening hatch

  • Overhead lights

  • Two reading lights

  • Curtains



FORWARD HEADS

  • Marine w.c. 12V electric lite flush

  • Washbasin with Corian type surround

  • Hot and cold pressurised water

  • Grating to shower tray

  • Electric shower pump

  • Shaver socket

  • Opening hatch

  • Fixed portlight Lockers

  • Mirror

  • Glass holder

  • Ventilation



AFT CABIN

  • Large centreline double berth

  • Upholstered seats port and starboard

  • Two corner lockers

  • Large hanging locker

  • Shelves

  • Three opening portlights

  • Two fixed portlights

  • Overhead light

  • Two reading lights

  • Concertina blinds



AFT CABIN ENSUITE

  • Vetus marine WCP w.c. 12v electric flush (new spring 2022)

  • Washbasin with Corian type surround

  • Hot and cold pressurised water

  • Electric shower pump

  • Shaver socket

  • Grating to shower tray

  • Lockers

  • Mirror

  • Glass holder

  • Fixed portlight

  • Opening portlight

​

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

bottom of page
