Dimensions

LOA: 12.86m (42'2")
LWL: 11.11m (37'6")
Beam: 4.03m (13'3")
Disp'ment: 11,800kg (26,000 lbs)
Ballast: 2,037kg (4,491 lbs)
Keel Type: Lifting Keel
Draft Min: 0.84m (2'9")
Draft Max: 2.72m (8'11")

Air draft: 18.73m (61'5'')

Engine

Make: Yanmar
Model: 4JH5E
Fuel: diesel
Power: 39.7kW (53 hp)

Hours: 790
Propeller: 3 Blade, Bronze, feathering

Tankage

Fuel: 288 litres (63 gallons)
Water: 545 litres (119 gallons)

SOUTHERLY 420

Details

Model: Southerly 420
Model Year: 2014
Tax Status: Paid
Location: La Trinite-sur-mer, France
Boat Ref: 3511485
Status:
Available

Tax: Paid


Price: £420,000 Just reduced !

This Southerly 420 centre cockpit bluewater cruising yacht was designed by Rob Humphreys and the Northshore inhouse design team. She has outstanding sailing performance with easy handling, a centre cockpit and spacious interior with luxurious accommodation. This yacht has been lovingly cared for and maintained by its current owner.

MANUFACTURERS DESCRIPTION

This yacht can be easily sailed by two people and boasts an impressive sail plan. The tall fractional rig with swept back spreaders combines a self tacking furling jib and a large overlapping Genoa provides optimal performance for varying wind conditions.

The centre cockpit offers comfortable seating in a secure enclosed area.

CONSTRUCTION
Heavy duty GRP moulding, hand laid up to Southerly’s Nordseal laminating system incorporating multi-axial and unidirectional reinforcements. The keel box is an integral part of the hull lay-up and sandwich construction stiffening runs the entire length of the hull topsides. All main bulkheads are bonded into the hull at main lay-up stage along with a stiffening grillage of transverse frames and longitudinal stringers. The engine bearers are also an integral part of the hull structure. Solid GRP hull below the waterline.

HULL

  • Dark navy blue gel coat

  • Ivory white boot top

  • Ivory white style lines

  • Clear gel coat below the waterline

  • Stainless steel striking plate fitted to bow, just below stemhead to approx. 300mm above waterline

  • A large transom, with teak decking, accessible from the deck by three steps give access for swimming, with a telescopic stainless steel boarding ladder and hot and cold shower.



DECK

Hand laid up GRP sandwich construction. Heavily stressed areas are additionally reinforced with uni-directional glass reinforcement. The deck is bonded to the hull through the entire length and to all main bulkheads resulting in a strong and integrated unit.

  • Ivory white gelcoat
  • Teak laid ring deck

  • Teak capping rail to hull and deck joint upstand

  • Access to sail locker from foredeck

VARIABLE DRAFT KEEL

The fixed ballast is an iron casting which acts as a grounding plate and as transverse stiffening for the keel unit. It is fitted into a moulded recess in thehull in the area of the keel box with stainless steel fastenings. The aerofoil keel blade is cast iron and incorporates a stainless steel pivot at the leading edge.

Variable draft is achieved by raising and lowering the blade with an electrically driven pump, fitted with a manual back-up. All hydraulics are easily accessible for maintenance. The keel control is fitted at the helm pedestal with a gauge showing the keel position. A removable stainless steel pin enables the keel to be locked in the “up” position.

ANTIFOULING

  • Coppercoat antifouling system applied to underwater areas

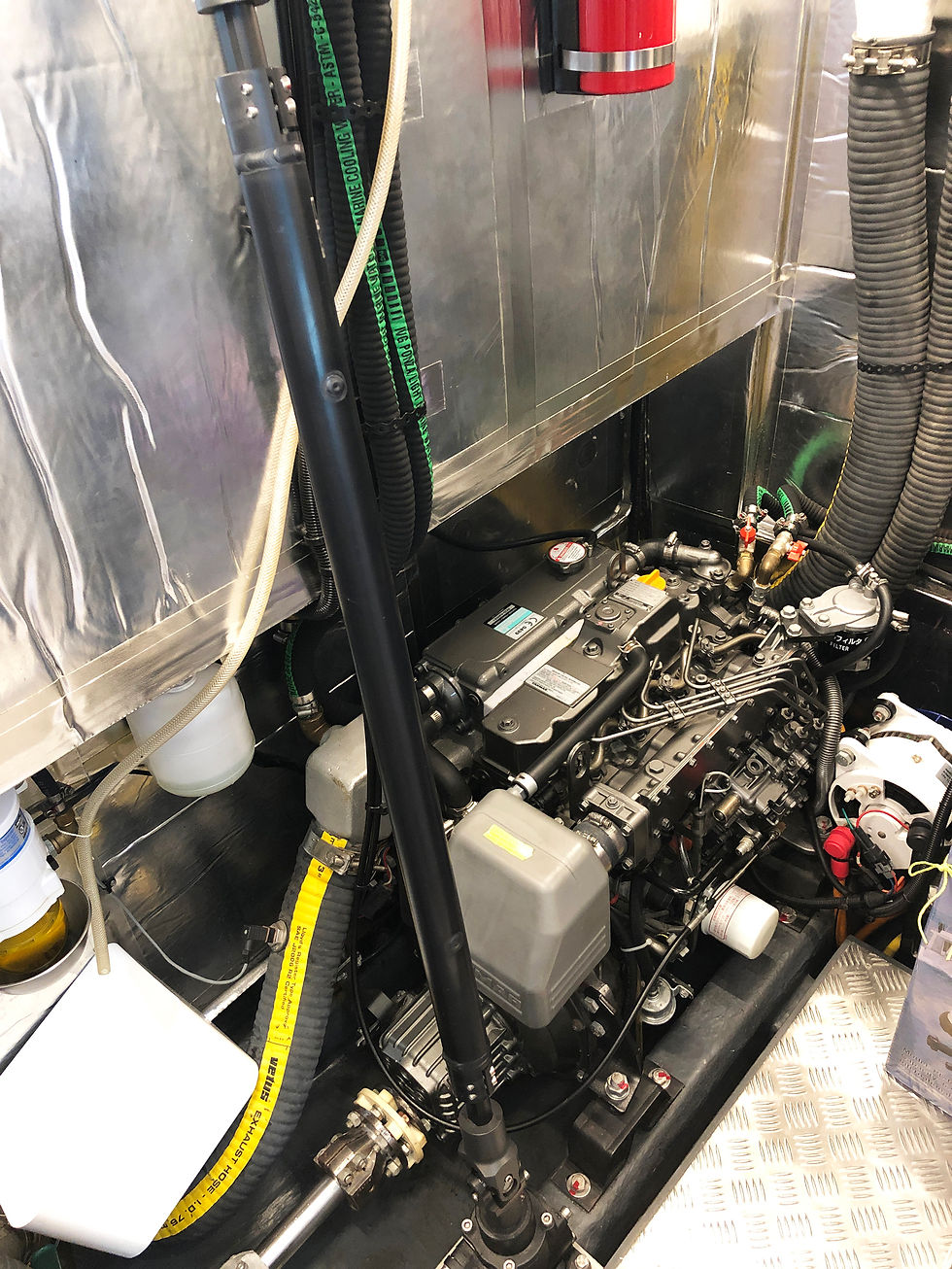

ENGINE

  • Yanmar 4JH5E 53 hp 39.6kW 4 cylinder, fresh water cooled, diesel engine (Engine hours 790)

  • Reduction/reverse gear

  • 80 amp alternator for charging engine start battery

  • 150 amp alternator to charging domestic batteries

  • GRP stern tube with water lubricated stern gland

  • Stainless steel propeller shaft

  • Bronze three bladed MaxProp feathering propeller

  • Substantial skeg fitted on centreline to protect propeller and rudders when yacht is dried out.

  • Non-metallic fuel tank - capacity 280 litres/62 gallons, with sediment trap, selector manifold and Racor single fuel filter system with clear bowl and heat shield. Filter includes water sensor and remote display)

  • Bronze water strainer with removable filter, accessible from the galley

  • 12 volt electric ventilator

  • Dedicated sound deadened engine compartment with door from aft heads compartment for maintenance

  • Automatic engine room fire extinguisher



THRUSTERS

  • 82 Kg Lewmar bow thruster in 185mm GRP tube

  • 82 Kg Lewmar stern thruster in 185mm GRP tube

  • Controls at cockpit steering pedestal (Replaced 2014)



ELECTRICS & ENGINEERING

  • 12 volt system

  • Three heavy duty 155Ah Mastervolt AGM slimline batteries (new 2017) for domestic service One 90Ah Mastervolt AGM slimline battery for engine start

  • One 55Ah Mastervolt AGM slimline battery for instruments, charged by service battery through a Mastervolt Magic DC/DC 12v/12V power supply

  • Mastervolt Mass-Combi12/2500/100 Inverter-Charger

  • Main Yanmar alternator 80A, to charge engine start battery

  • Second alternator, Mastervolt 150A, to charge domestic batteries

  • Isolating switches

  • LED cabin lighting throughout

  • Reading lights over bunks

  • Chart light over navigation table

  • Full navigation light system incorporating LED bow light, LED stern light, LED masthead tricolour light with all round white anchor light, LED Port and starboard lights, deck flood light and steaming light

  • Automatic LED lights in cabin cupboards and external lockers

  • Circuit breakers on main panel

  • 12v 10A interior sockets (cigarette light type)

  • 240V Ring main with 4 double outlet sockets, 1 in saloon, 2 in galley, 1 in aft cabin, fitted with earth leak trip circuit breaker and connection cable and plug (16A) for shore power connection and 1kW immersion heater fitted to calorifier

ENGINEERING

  • Eberspatcher Airtronic D5 hot air heating system, with four outlets, forecabin, saloon, galley and aft cabin

  • 45 litre calorifier for hot water, using engine cooling water and 1Kw immersion heater

  • Washing machine, Nova 3Kg fitted by port saloon seating with access from mid-cabin/forward heads

  • Samsung 26” LED television with lift mechanism, fitted to starboard side saloon

  • DVD Player connected to TV (New 2014)

  • Three automatic electric bilge pumps

  • Additional electric pump with long hose

  • All pipes and electric supply fitted in fore cabin ready for installation of a watermaker

WATER SYSTEMS & PUMPS

  • Pressurised hot and cold water system

  • Mixer tap to galley sink

  • Mixer tap in heads compartments

  • Two non-metallic fresh water tanks - total capacity 545 litres/119 gallons

  • Electric fresh water pressure pump (Replaced 2015)

  • Hot water provided by engine calorifier unit

  • Electric sump pumps to shower trays

  • One manual bilge pump

  • Three electric submersible bilge pumps



ELECTRONICS & NAVIGATION

  • Raymarine e125 Hybrid Touch Navigation display

  • Two independent GPS, Raymarine and Garmin

  • Raymarine AIS 650 Class B receiver-transponder

  • VHF Icom 423 radio set

  • Iridium voice and data worldwide radiotelephone with external antenna (New 2014)

  • Inboard WiFi receiver-amplifier with in-mast antenna

  • Marine radio with USB input for smartphone music

  • Colour weather forecast station. Temperature, humidity and weather forecast (New 2018) Masterview East Mk11 service battery controller

  • Solar panels regulator/controller

  • Day/Night internal surveillance camera connected to internet (with remote surveillance/alert)(New 2015)

  • NEMA multiplexer with UBSB output to connect to a PC

  • Two plug sockets 12V 10A

  • Raymarine P70 pilot controller

  • Raymarine Smart Controller wireless remote for autopilot

  • Raymarine i70 instrument displays, wind, speed and depth

STEERING

  • Semi-balanced twin rudders

  • Single 36’’ stainless steel cockpit wheel

  • Cobra system

  • Single lever engine control

  • Emergency steering system

  • Compass guard and 6 inch main steering compass



SPARS & RIGGING

  • Selden inmast furling (Linear drive) with double headsail rig, with extra forestay forward of standard forestay for a genoa

  • Double swept back spreaders

  • Selden anodised aluminium spars, finished in silver

  • Internal halyards

  • 1x19 stainless steel wire standing rigging with swage toggle-fork chrome bronze

  • rigging screws

  • Backstay with manual tensioner

  • Furlex headsail reefing system

  • Carbon whisker pole c/w topping lift

  • Single line reefing led aft to cockpit for mainsail

  • Solid kicker, with strong gas insert

  • Main halyard

  • Topping lift

  • Kicker, jib sheet, main halyard, topping lift, outhaul and 2 reefs lead aft

  • Jib halyard at mast

  • Burgee and signal halyards

  • Lewmar size 30ST winch on mast

  • Mainsheet aft of cockpit

  • Rymarine 18” HD radar scanner fitted at mast

  • TV/Radio Glomex antenna fitted to mast

  • VHF/AIS antenna fitted to mast

  • LED mooring light

  • LED motoring light



SAILS

  • Norlam XP fully battened mainsail system for in-mast reefing

  • Norlam XP Self tacking jib

  • Norlam XP Genoa

COCKPIT

  • Centre cockpit

  • Self-draining

  • Laid teak to cockpit seats

  • Cockpit cushions with drainable foam

  • Laid teak to cockpit sole

  • Teak cockpit table on forward side of pedestal, with folding leaves, stowage and stainless steel grabrail

  • Glass and stainless steel windscreen

  • Sprayhood above windscreen, with opening central windows and fixed roof window to view sails, with removable window covers and hide covered grab bars to both sides.

  • Fixed bimini, made by Tecsew, protection over all the cockpit, including the helm (New in 2017)

  • Two removable solar panels 150 Watts each fitted to the Bimini (New 2017)

  • Lazarette locker to port and starboard

  • Gas bottle storage for two cylinders in cockpit locker

  • Perspex sliding hatch, vertically sliding wash boards with self-draining housing

  • Instrument panel above hatchway with Raymarine i70 displays for wind, speed and depth

  • External speakers for audio system

  • Emergency manual water pump

  • Cockpit light (removeable)

  • Two winch handle pockets

  • Three safety harness eyes

DECK GEAR & LOOSE EQUIPMENT

  • Mooring cleats forward and aft mounted on bulwark

  • Spring cleats amidships mounted on bulwark

  • Stainless steel stemhead fitting with twin bow rollers

  • Large foredeck chain locker

  • Quick Prince DP3 electric windlass with hand held control

  • Stainless steel pulpit incorporating navigation light bracket

  • Stainless steel stanchions and guardwires with gates port and starboard with stainless steel ladder Stainless steel pushpit incorporating stern gate, navigation light bracket and ensign socket

  • Teak pad for outboard engine stowage fitted to pushpit

  • Single teak seats to port and starboard pushpit

  • Good access aft for boarding via transom

  • Aluminium folding stern boarding ladder (New 2014)

  • Two large aft deck lazarette locks with LED lights

  • Fuel and water deck fillers

  • Access for emergency steering

  • Self-tacking foresail track with sheet to cockpit

  • Turning blocks to take reefing lines

  • Mainsheet track with control lines

  • Lewmar 45 mainsheet winch

  • Five rope clutches to port and five to starboard, for running rigging

  • Two Lewmar 45 AEST electric winches at companionway, port and starboard

  • Two Lewmar Evo 47 manual winch for Genoa

  • Stainless steel grab handles on either side of coachroof with integral mainsheet lead Optional sprayhood, attached to windscreen

  • 21kg Ultramarine stainless steel anchor

  • 65 Metres stainless steel 12mm chai, Ketten-Walder

  • Second anchor with 30 metres of warp

  • Stainless steel davits, Cooney LSD125 Kg with hand winches for tender lift and stow Zodiac Fast Roller tender, 2.85M fitted with Yamaha 2.5hp outboard motor (New 2018) Six person Liferaft

  • Six Fenders

  • Three fire extinguishers

  • Automatic fire extinguisher in engine space

  • One fire blanket

STEERING PEDESTAL

  • Lewmar Mamba steering system pedestal with nav pod

  • Wheel rim covered in hide

  • Compass

  • Keel control and position indicator LED panel

  • Raymarine Evolution 400 autopilot with rate gyro, P70 control panel

  • Two joysticks to control bow and stern thrusters

  • Large engine control panel, with Rev counter, temperature & oil pressure gauges Raymarine Hybrid Touch type e95 navigation display

  • Engine sea water alarm

  • Racor fuel filter water alarm

  • Second handset for ICOM VHF

  • VHF loud speaker

  • Wheel and pedestal cover

WINDOWS, HATCHES AND VENTILATION

  • Six opening deck hatches, size 60 and size 10, over forecabin, size 20 over saloon, size 20 over chart table, size 00 over forward heads

  • Two glazed opening ports in aft cabin coamings

  • Two glazed opening port in aft heads coamings

  • Glazed opening port in galley

  • Two dorade and one fixed ventilator on deck serving heads and saloon

  • Acrylic main companionway hatch

  • Tri-view vertical hull portlights in saloon port and starboard.

  • Pilot house windows and hull ports are tinted toughened glass, bonded into recesses in GRP mouldings

  • Pilot house opening forward windows port and starboard are toughened tinted glass

INTERNAL JOINERY & UPHOLSTERY

  • Interior joinery is finished in solid teak and marine faced quality plywood as standard. Worktops in Tristone Frost Land F-104

  • Linings are fabric covered plywood or GRP as appropriate.

  • Cabin soles are teak striped non-slip laminate.

  • Saloon seating in Jab Vasa 1-1170-396

  • Forward cabin in Jab Fjord Bergen 1-2881-199

  • Aft cabin mattress in blue stripped ticking

  • Helmsman seat in Jab Gaucho 1-1142-254

  • White concertina blinds fitted to saloon windows

  • Mosquito nets and blackout blinds fitted on cabin opening hatches

  • Seven inch interior sprung mattress in aft cabin

ACCOMMODATION

The layout is in accordance with the general arrangement drawing. There are a total of seven berths with two in the forecabin, two in the aft cabin and three in the saloon (including double berth conversion to port).

GALLEY
  • Twin stainless steel sinks

  • White Corian type worktop

  • Pressurised hot and cold water

  • Aquafilta active carbon filter on cold water

  • Stainless steel grab rail

  • Front loading stainless steel refrigerator, 130L, with keel cooler

  • Top loading stainless steel freezer 51L, with keel cooler

  • Fully gimballed gas cooker with three burners, grill and oven (fail-safe devices on all burners)

  • Electrical safety gas cut off tap

  • Carbon Monoxide detector

  • Microwave oven

  • Fresh water emergency foot pump

  • Ample storage for crockery and cutlery

  • Cupboards

  • Fireblanket

  • Opening ports

  • Fixed hull port

  • Overhead light



SALOON

  • Seating for eight people

  • Excellent vision

  • Folding leaf table

  • Stowage

  • Bookshelf

  • Two opening hatches

  • Two front opening windows

  • Two fixed portlights

  • Overhead lights

  • Concertina blinds to pilot house windows

  • Overhead lights

  • Pull out double berth conversion to port seating



NAVIGATION AREA

  • Raised chart table to starboard with excellent forward and lateral visibility

  • Seat with stainless steel handrail

  • Instrument console forward of chart table

  • Chart stowage under hinged lid

  • Locker spaces

  • Opening hatch

  • Overhead lights

  • Chart light

  • Main switch panel

  • Oilskin locker under companionway steps



FORE CABIN​

  • ‘V' berth, two long single berths

  • Infill to convert to a double

  • Large hanging locker

  • Large shelved locker

  • Two full length shelves with lockers

  • Two fixed portlights

  • Two opening hatches

  • Overhead lights

  • Two reading lights

  • Curtains



FORWARD HEADS

  • Electric Tecma Marine w.c.

  • Washbasin with Corian type surround

  • Hot and cold pressurised water

  • Grating to shower tray

  • Electric shower pump

  • Opening hatch

  • Lockers

  • Mirror

  • Glass holder

  • Ventilation



AFT CABIN

  • Large centreline double berth

  • Upholstered seats port & starboard

  • Two corner lockers

  • Large hanging locker to port

  • Shelf

  • Two opening portlights

  • Opening hatch

  • One fixed portlight

  • Overhead lights

  • Two reading lights

  • Concertina blinds

  • Access to steering gear

  • Glass holder

  • Opening portlights



AFT CABIN EN-SUITE

  • Electric Tecma Marine w.c.

  • Washbasin with Corian type surround

  • Hot and cold pressurised water

  • Separate shower with seat and hinged door

  • Electric shower pump

  • Grating to shower tray

  • Lockers

  • Mirror

SPARE PARTS

  • Fresh water pressure pump

  • Grey water pump for showers or sea water for toilets

  • Electronic charge regulator for the 150A alternator

  • Seawater impeller

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Northshore Shipyard, Itchenor, Chichester, West Sussex PO20 7AY Email: sales@northshore.co.uk

Tel: +44 (0) 1243 512611

  • Facebook - White Circle
  • Twitter - White Circle
