HULL CONSTRUCTION

Heavy duty GRP Moulding, hand laid to Northshore Nordseal laminating system incorporating multi-axial and unidirectional reinforcements. Thickness increases progressively towards the keel area. The keel box is an integral part of the hull lay-up and sandwich construction stiffening runs the entire length of the hull topsides. All main bulkheads are bonded into the hull at the main layup stage along with a stiffening grillage of transverse frames and longitudinal stringers. The engine bearers are also on integral part of the hull structure. Teak rubbing strakes with stainless steel strips fitted port and starboard

• Gelcoat colour: Off white 3969

• Boot top stripes: Gunmetal Grey

• Style lines: Gunmetal Grey

• Underwater finish: Coppercoat antifouling system



DECK CONSTRUCTION

Hand laid GRP. Sandwich type construction using balsa core stiffening , with marine plywood in high stress areas where fittings are positioned. Heavily stressed areas are additionally reinforced with unidirectional glass reinforcement, The deck is bonded to the hull through the entire length and to all main bulkheads resulting in a strong an integrated unit. Teak cappings are used to cover the hull to deck joint upstand

• Gelcoat colour: Off white 3969

• Ring deck: Two tone non slip areas

​

VARIABLE DRAFT KEEL

The fixed ballast is an iron casting which acts as a grounding plate and as transverse stiffening for the keel unit. It is fitted into a recess in the hull in the area of the keel box with stainless steel bolts. The aerofoil swing keel is cast iron and incorporates a stainless steel pivot at the leading edge. The swing keel is raised and lowered by a hydraulic ram powered by an electrically driven pump with a manual back up. All hydraulics are easily accessible for maintenance. A keel control panel and gauge showing keel position is fitted at the wheel pedestal. A removeable stainless steel pin positioned to enable the keel to be locked in the “UP” position. A new Dyneema keel pennant was fitted September 2020

​

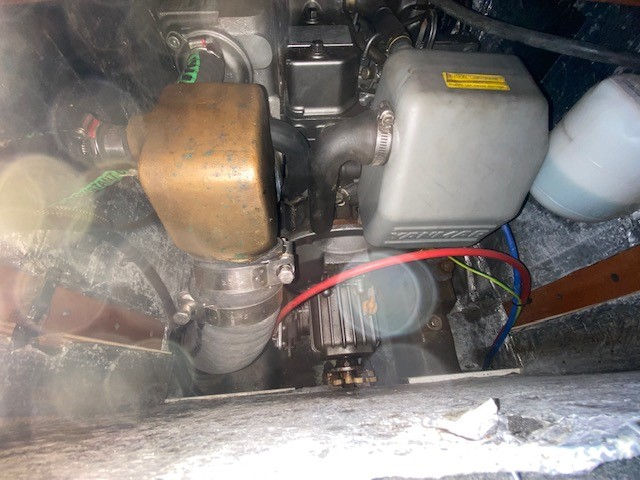

ENGINE

• Yanmar 3JH3-E 40hp 3 cylinder fresh water cooled diesel engine, serviced annually, 700 hrs on Tachometer Reduction/reverse gear

• 60 amp alternator

• Bronze stern tube with water lubricated stern gland

• Stainless steel propeller shaft

• Brunton H5 3 bladed autoprop feathering propeller

• Ambassador AM10 rope cutter on propeller shaft

• Substantial skeg fitted on centreline to protect propeller and rudders when yacht is dried out

• Non-metallic fuel tank under cabin sole below chart table – capacity 246 litres/54 gallons, with sediment trap and line filter

• Non-metallic water strainer with removeable filter

• 12V electric ventilator

• Sound deadening to engine box

• Hinge up panels at either end of engine box for access

• Engine box can be completely removed for maintenance

​

BOWTHRUSTER

• 75 Kg thrust bow thruster fitted with control at steering position

​

ENGINEERING

• Hot air heating system with 4 outlets

• Holding tank system fitted, one tank fitted under saloon, one tank fitting under sail locker. Heads pump to sea or into tank.

​

ELECTRICS

• 12 Volt system

• Four heavy duty batteries charged from engine alternator, one for engine , three for domestic use Mastervolt battery charger IVO 12/40 amp smart 3 step

• Isolating switches

• Cabin lighting throughout

• Reading lights over bunks

• Chart light over navigation table

• Full navigation light system, incorporating bow light, stern light, masthead tricolour light with all round white anchor light, deck flood light and steaming light.

• Circuit breakers on main panel

• 12V socket fitted at navigation station

• 240V ring main, with 3 double outlet sockets, earth leak circuit breaker and connection cable with shore plug connection.

• 1Kw immersion heater fitted in calorifier.

• Galvanic isolator

​

WATER SYSTEMS & PUMPS

• Pressurised hot and cold water system

• Mixer tap to galley sink

• Mixer tap in heads compartments

• Two non-metallic water tank – Total Capacity 270 litres/59 gallons Electric pressure pump

• Hot water provided by engine calorifier unit

• Electric sump pumps to shower trays

• One manual bilge pump

• One electric submersible bilge pump

• Deck shower with holt and cold water fitted on transom



NAVIGATION & ELECTRONICS

• Radar reflector fitted to mast

• Raymarine ST60+ speed, depth and wind speed indicators mounted in instrument panel above companionway Raymarine autopilot with Mamba drive, ST6002+ displays in cockpit and at chart table. S2G corepack with rate gyro compass

• Raymarine RAY218E VHF radio with DSC function including aerial, with second hand mike in cockpit Raymarine RD418D 4kW digital radome mounted on bracket at mast

• Raymarine C90W multi function display

• Raymarine AIS500 transceiver

• Glomex TV antenna at masthead

​

STEERING

• Semi balanced twin rudders

• Twin 30” stainless steel cockpit wheels with hide rims Lewmar/Whitlock Cobra steering system

• Single lever engine control

• Emergency steering system

• 6” main steering compass and compass guard

​​

SPARS & RIGGING

• Selden fractional rig

• Double swept back spreaders

• Selden anodised aluminium spars finished in silver

• Internal halyards

• 1 x 19 stainless steel wire standing rigging with swage toggle fork chrome bronze rigging screws Backstay with manual tensioner

• Self-tacking foresail

• Furlex headsail reefing system

• Single line reefing led to aft cockpit for mainsail

• Third reef (2 part) also led to cockpit

• Solid kicker

• Kicker, jib sheet, main halyard, topping lift, outhaul and 2 reefs lead aft

• Jib halyard at mast

• Burgee and signal halyards

• Sail control lead aft across pilot house

• Lewmar 30 winch on mast

• Mast re-rigged March 2022

​

SAILS

• North Dacron sails

• Self tacking jib foresail with UV protection strip Fully battened mainsail with Selden MDS cars Stack pack mainsail cover with lazy jacks

• G1 Gennaker

​​
